ROBERTSON VENTILATION INTERNATIONAL
Inlet Systems


Breezewall Ventilating Wall Panel


The Robertson Breezewall Ventilating Wall Panel is a specially designed and engineered architectural and industrial wall panel developed to offer a cost effective method of providing ventilation to buildings. The system has been designed to obviate the necessity of individual louvre blades which require to be installed one at a time, and, being in sheet form, makes additional birdscreen unnecessary. Available in a wide range of materials and finishes to suit any application, Breezewall offers a broad architectural appeal.

Breezewall is formed from sheet metal with similar appearance to conventional louvres but produced in sheet panels. Materials and finishes include pre-coated Zincalume and galvanised steel, aluminium and stainless steel, painted or unpainted and the Robertson range of coatings in a choice of colours.

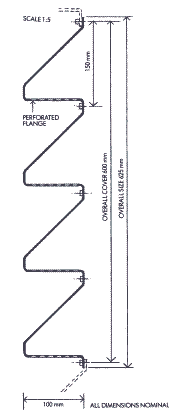

A standard Breezewall panel has a nominal cover width of 600 mm, with a 100 mm deep profile and can be supplied in varying lengths. Provides a nominal free area of 40 per cent.

Back to Top
Click link to download Acrobat pdf data sheet
Breezewall Ventilating Wall Panel
35 KB
Contact your nearest RVI service centre for performance details and technical advice.
