Magna Rib
Exposed Fastener Roof & Wall System

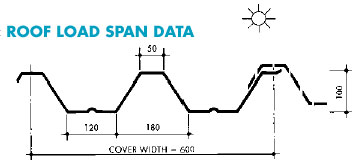

Magna Rib (IMR) Roof
General Description
600 mm cover width, deep 100mm profile roof cladding (IMR).

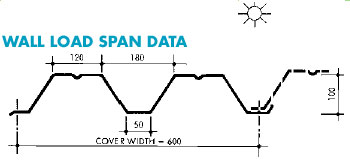

Magna Rib Wall (MR)
General Description
600 mm cover width, deep 100mm profile wall cladding.

Features
Excellent spanning capacity. Excellent rigidity and structural performance. Excellent drainage capacity. Deep profile generates strong aesthetic values.

Applications
May be specified as single skin, thermally or acoustically rated roof and/or wall cladding. In-place examples include large-scale, long-span industrial structures including power stations, wide body aircraft hangars, and major warehouse facilities.

Orientation & Accessories
Can be applied as a vertical, horizontal or diagonal system to walls. Can be mitred but not curved. Supplied with a full range of accessories including liner trays etc. as required.
