The metal face surface is available in a unique non-directional embossed texture or a smooth non-embossed finish. A lightly striated configuration, which enhances aesthetic appeal and provides added strength, is also available. All panels and accessories are available in a wide range of standard or custom colours, with external and internal faces in different colours if required.

The internal metal liner sheet is finished in an off white polyester which can be overpainted on-site if required.

Features
Endless creative designs
Colours and finishes with numerous textures
Excellent thermal insulation properties
Versacor multi-layer protective coating system
Ease of installation
Single Responsibility service

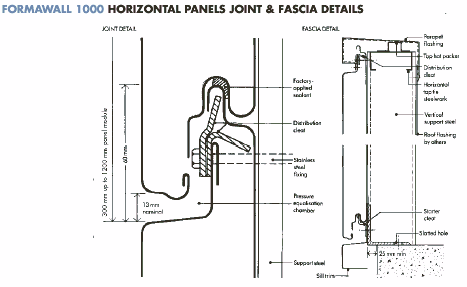

1000 horizontal panels incorporate Robertson's unique joint design which utilises the 'rainscreen concept', eliminating the risk of water penetration and reducing exterior maintenance costs.

The pressure equilisation chamber, 13mm capillary break, internal baffle and sloped drain shelf at each horizontal joint provide optimum weather integrity. The 13mm capillary break also creates a strong linear expression of the panel module.

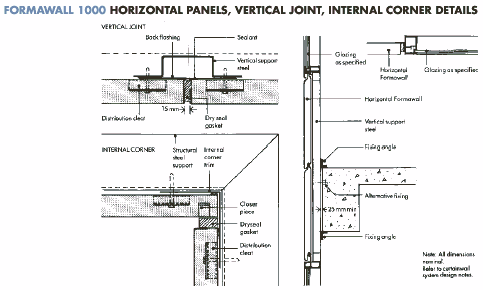

Vertical joints between panels feature a dry seal, compressible gasket, recessed to complement the horizontal joint reveal. Other options are also available.

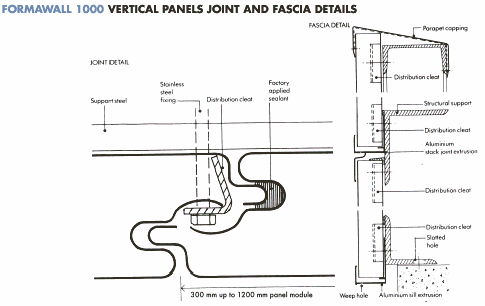

Formawall 1000 vertical panels are provided with double tongue and grooved joints at the edges which accommodate factory-applied sealant and a concealed fixing system. Since leakage often occurs around exposed fastener holes, this concealed fastener design eliminates fasteners as a major source of leakage.

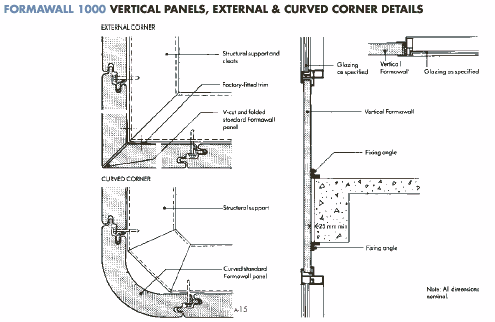

Panels can be factory or site cranked and curved to add to design flexibility.
